Overview
S3D DBX to IFC is designed for the Oil & Gas, Power, and Utility industries. It exports Smart Plant 3D models to IFC files, enabling accurate and efficient data exchange for BIM workflows.
The software includes a quantity export feature for cost estimating and project planning, helping streamline your workflow and improve project outcomes. The user-friendly interface generates detailed and precise IFC files in just a few clicks.
Main Features

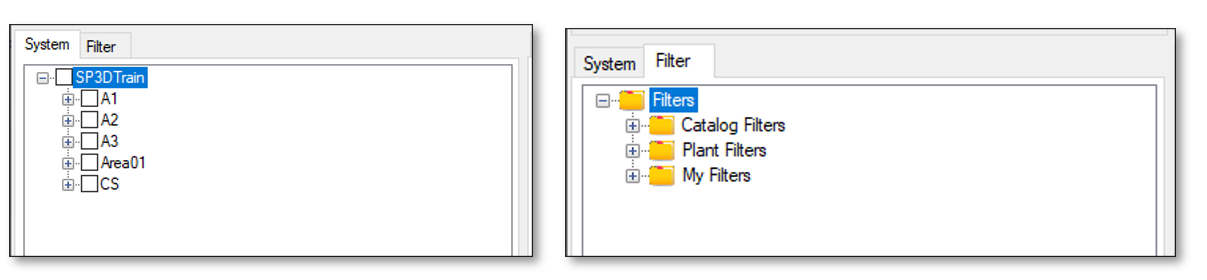

Export Specific Data You Need
You have the flexibility to export selected systems or filters to IFC by choosing the desired node or filter from the user interface. This allows for an efficient and streamlined export process — select only the specific data you need.

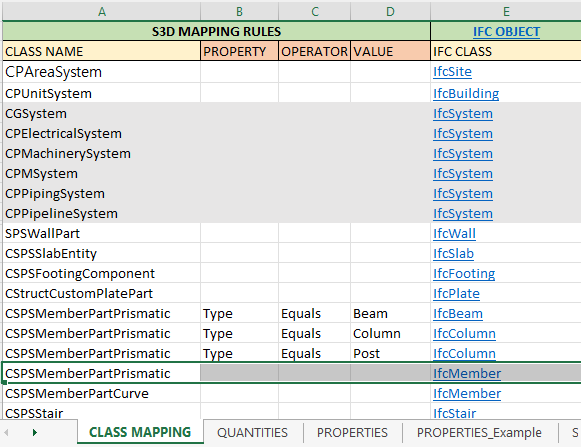

S3D to IFC Class Mapping
The software provides default Excel configurations for mapping between S3D classes and IFC classes, ensuring a smooth transition between the two. You can customize these configurations to tailor them to your specific project needs.
Quantity Exporting by Configuration
Quantity exporting enables you to map S3D item information to IFC item information. The default configuration provides standard settings, and you can customize the configuration to meet your unique requirements — ideal for cost estimating and project planning.
Additional Exporting Options
S3D DBX to IFC offers a wide range of options including:
- Select properties through SQL queries or COM
- Adjust geometry smoothness
- Apply color based on S3D styles
- Customize units of measurement
Benefits
BIM Integration
Bridge the gap between plant design data and BIM workflows with standard IFC output.
Cost Estimating
Quantity export feature enables accurate material takeoffs and project cost planning.
Configurable
Flexible class mapping and property configuration to match your project standards.
